Distribution
Receives the main, high-capacity electrical power and distributes it through a busbar system to multiple outgoing feeders. Each feeder supplies a specific area, load, or downstream panel such as a sub-panel or lighting board.

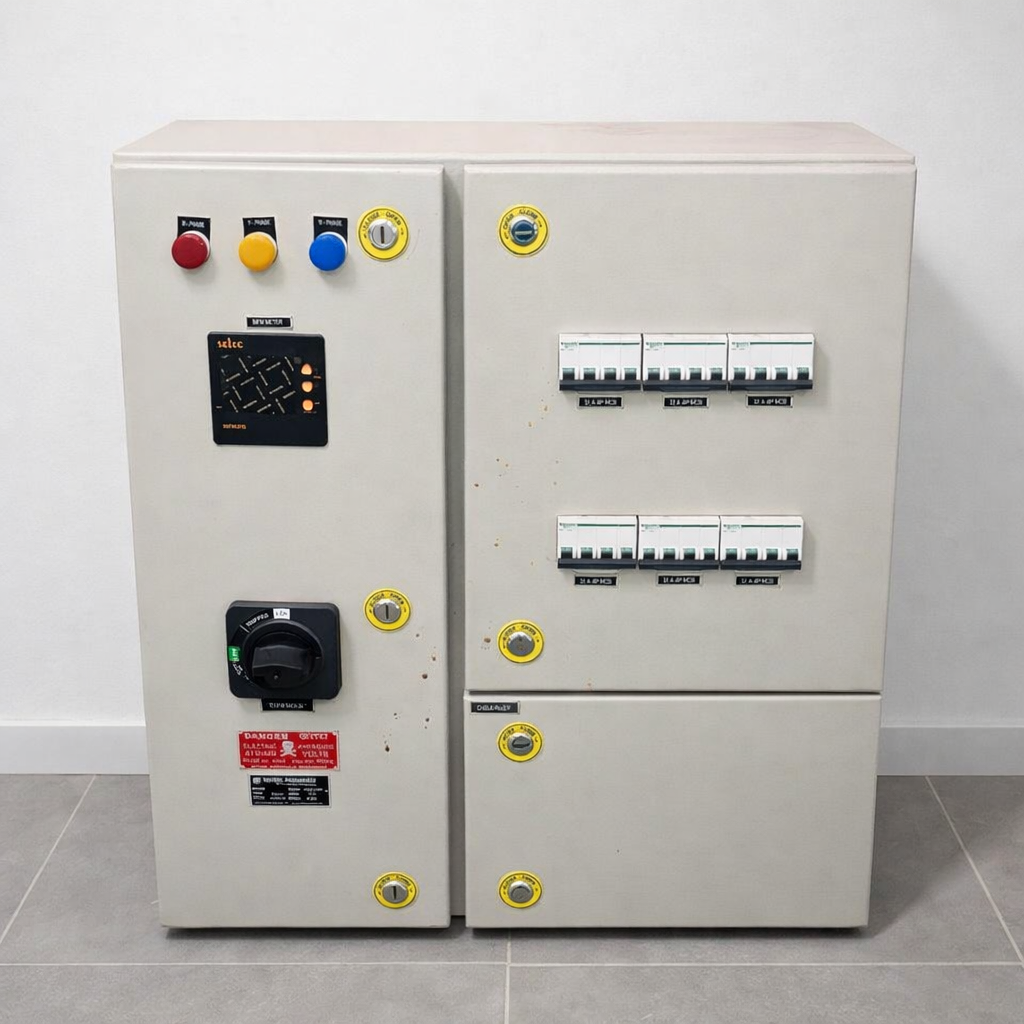

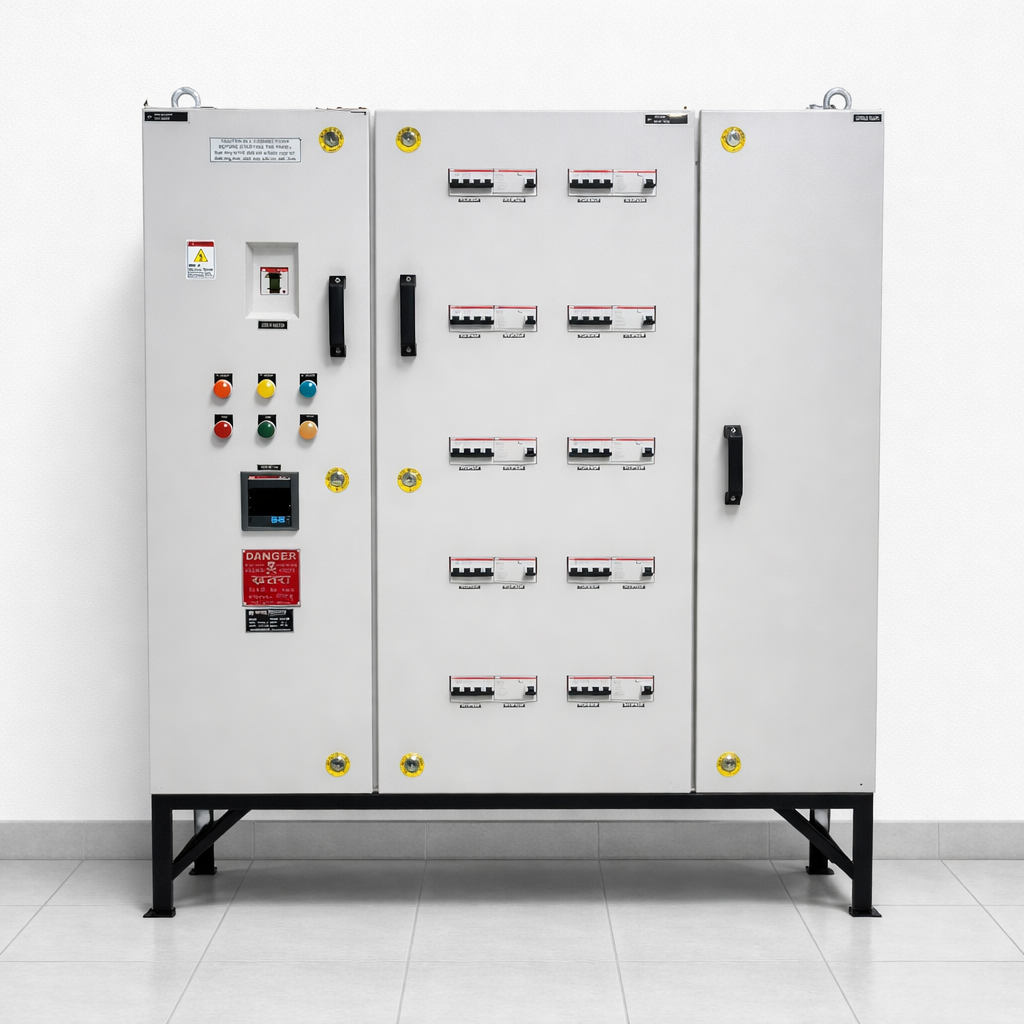

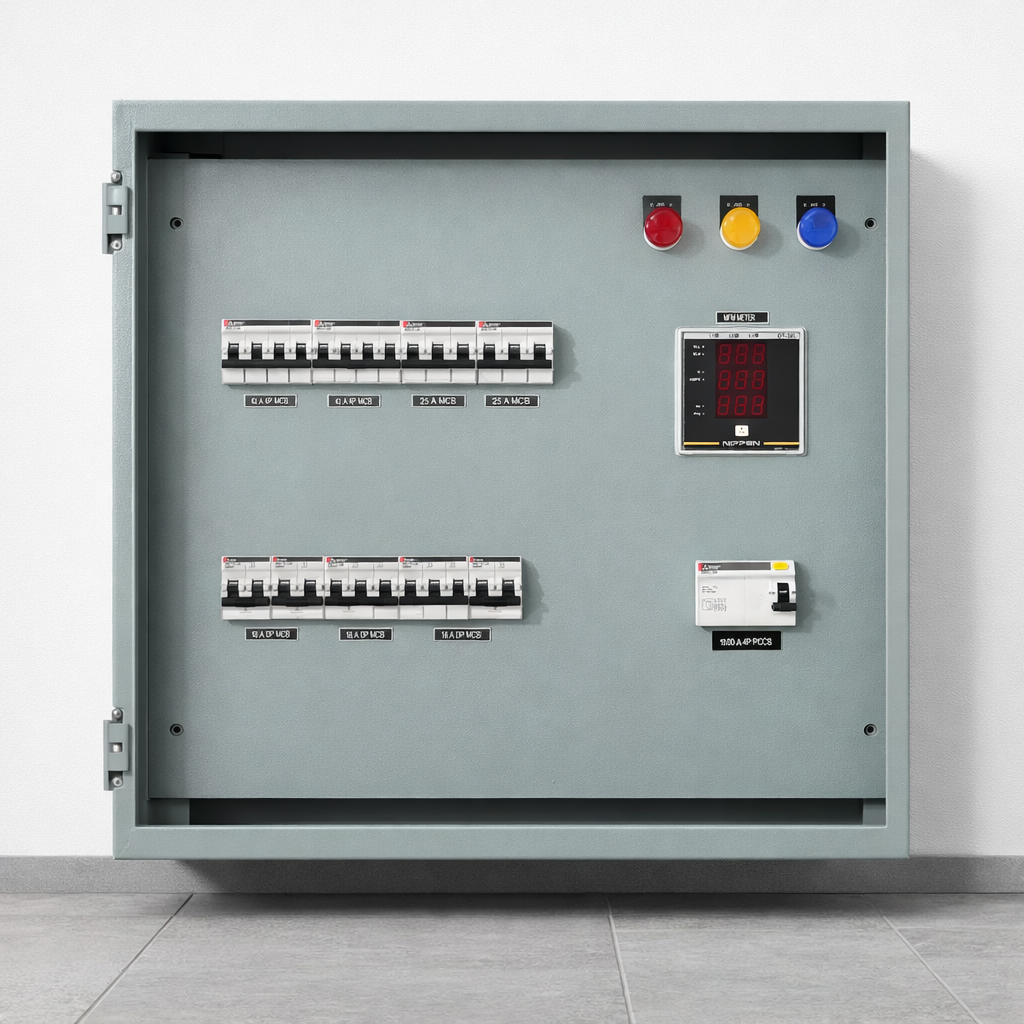

An Electrical Power Distribution Board (PDB) is a centralized enclosure, typically found in commercial buildings, industrial facilities, and large residential complexes, that safely divides an incoming electrical power feed into smaller, protected circuits.
The PDB is essentially the nerve center of a facility's electrical system, acting as an intermediate stage between the main power source (like a transformer or main incoming panel) and the final consumer circuits (like lighting, outlets, and machinery).
The PDB performs three crucial functions in managing and safeguarding the electrical power within a facility:
Receives the main, high-capacity electrical power and distributes it through a busbar system to multiple outgoing feeders. Each feeder supplies a specific area, load, or downstream panel such as a sub-panel or lighting board.
Houses protective devices—most commonly Molded Case Circuit Breakers (MCCBs) or Air Circuit Breakers (ACBs). These protect incoming equipment, internal busbars, and outgoing feeder cables from damage due to short circuits and overcurrents (overloads).
Provides a convenient, safe point for maintenance personnel to manually isolate power to specific circuits without shutting down the entire facility, helping with fault tracing and repairs.
A typical PDB is a robust, metal enclosure designed for indoor installation and consists of the following main elements:
The metal cabinet that protects the internal components from the environment and accidental contact.
A large switch or circuit breaker that allows the entire PDB to be disconnected from the main power source.
Thick copper or aluminum bars carry the total incoming current and distribute it across the outgoing circuit breakers. These bars determine the phases (R, Y, B) and neutral.
A series of smaller-rated MCCBs or fuses connected to the busbars. Each protects a single outgoing circuit (feeder).
Some PDBs include meters and Current Transformers (CTs) to monitor voltage, current, power factor, and energy consumption.
