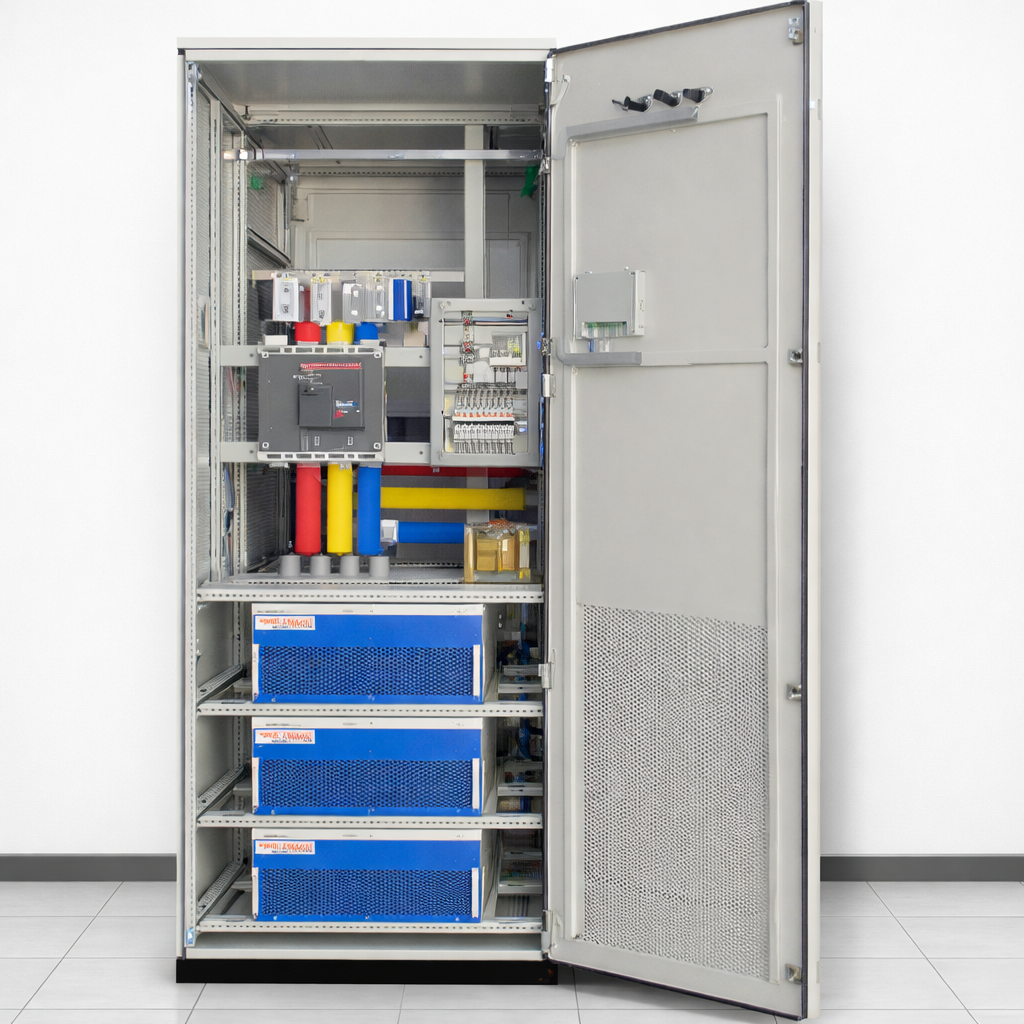

An Electrical AHF Panel houses an Active Harmonic Filter (AHF) and is a sophisticated, power electronic device essential for modern industrial and commercial electrical systems. Its primary function is to actively and dynamically mitigate harmonic distortion—a form of electrical pollution—to significantly improve overall power quality.
Unlike older, static Passive Harmonic Filters, the AHF uses advanced control algorithms and semiconductor technology (typically IGBTs) to provide a dynamic, real-time solution for maintaining a "clean" electrical system.
Modern electrical systems use a high volume of non-linear loads, which draw current in short pulses rather than a smooth sine wave. These loads distort the waveform and create power-quality issues.
Typical equipment that injects harmonics into the system includes:
These pulsed currents introduce harmonics—unwanted current and voltage frequencies that are multiples of the fundamental frequency (for example the 5th, 7th, 11th harmonics of a 50 Hz or 60 Hz system). Excess harmonics increase losses, stress equipment, and degrade overall power quality.
Excessive heating of transformers, motors, and cables, which can lead to premature insulation breakdown and equipment failure.
Nuisance tripping of circuit breakers and interference with sensitive electronic equipment and control circuits.
Reduction in the actual usable power capacity of transformers and switchgear, forcing derating of the system.
Non-compliance with power-quality standards such as IEEE 519 can result in financial penalties or mandated corrective action from the utility.
The AHF panel works on the principle of active cancellation, similar to noise-canceling headphones:
The AHF continuously monitors the electrical current being drawn by the non-linear loads using a Current Transformer (CT).
A powerful Digital Signal Processor (DSP) analyzes the measured current in real time, calculating the exact amplitude and phase angle of every harmful harmonic component.
The DSP controls the IGBT-based inverter to generate and inject an equal but opposite current waveform (the compensating current) back into the electrical system.
When the harmful harmonic current meets the compensating current, they cancel each other out. This leaves only the clean, sinusoidal fundamental current waveform to be drawn from the utility supply.
This process happens instantaneously, often in less than a millisecond, allowing the AHF to adapt rapidly to changing load conditions.
AHF panels provide a comprehensive power quality solution:
Dramatically reduces Total Harmonic Distortion (THD) of current and voltage to compliant levels (typically <5%), protecting equipment and improving overall power quality.
Most AHFs also provide real-time Reactive Power Compensation, improving the power factor (PF) to near unity (e.g., >0.99), which helps lower demand charges and losses.
In three-phase systems, the AHF can inject current to compensate for unbalanced loads, reducing neutral current and improving overall system stability and voltage symmetry.
Can be programmed to target specific harmonic orders and easily adapt to future changes in the facility’s electrical load without requiring hardware modifications.
