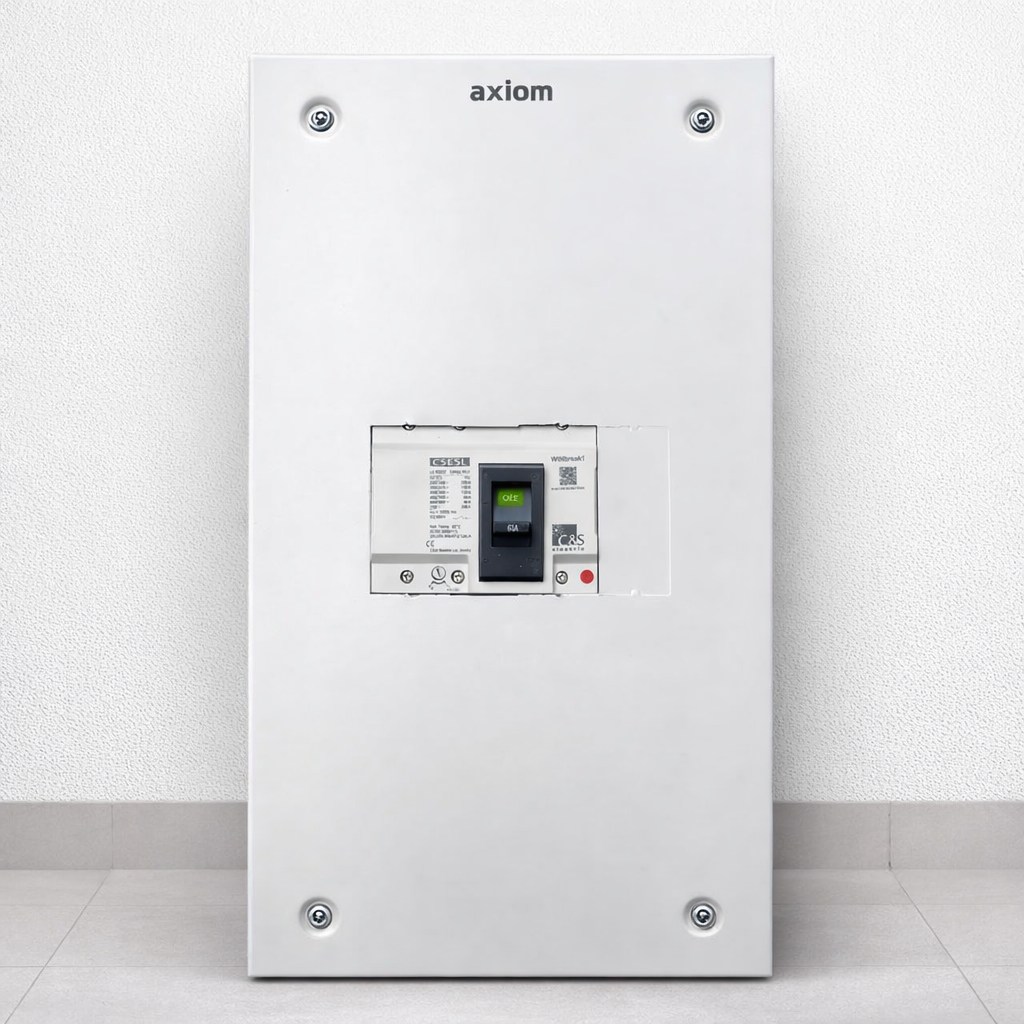

Enclosure Body
This is the metal (e.g., sheet steel, aluminum) or non-metallic (e.g., heavy plastic or fiberglass) box. It is sized to accommodate the MCCB, wiring space, and operating mechanisms.
Primary Functions
The design of the enclosure is dictated by the need for protection and safe operation:
Safety and Isolation
The enclosure prevents personnel from accidentally touching live parts, significantly reducing the risk of electric shock.
Environmental Protection (IP Rating)
The enclosure uses an IP rating such as IP55 or IP66 to protect the MCCB from dust, moisture, and water spray—preventing damage to sensitive breaker components.
Containment
In case of a severe fault like a high-energy short circuit, the enclosure contains the arc blast and gases generated when the MCCB trips—protecting nearby personnel and equipment.
Security and Tamper Resistance
The enclosure allows for padlocking to secure the MCCB in either the OFF position (for LOTO) or ON position to prevent accidental operation.
