1. Mains Monitoring
The AMF controller continuously monitors the incoming mains supply for parameters like voltage and frequency.

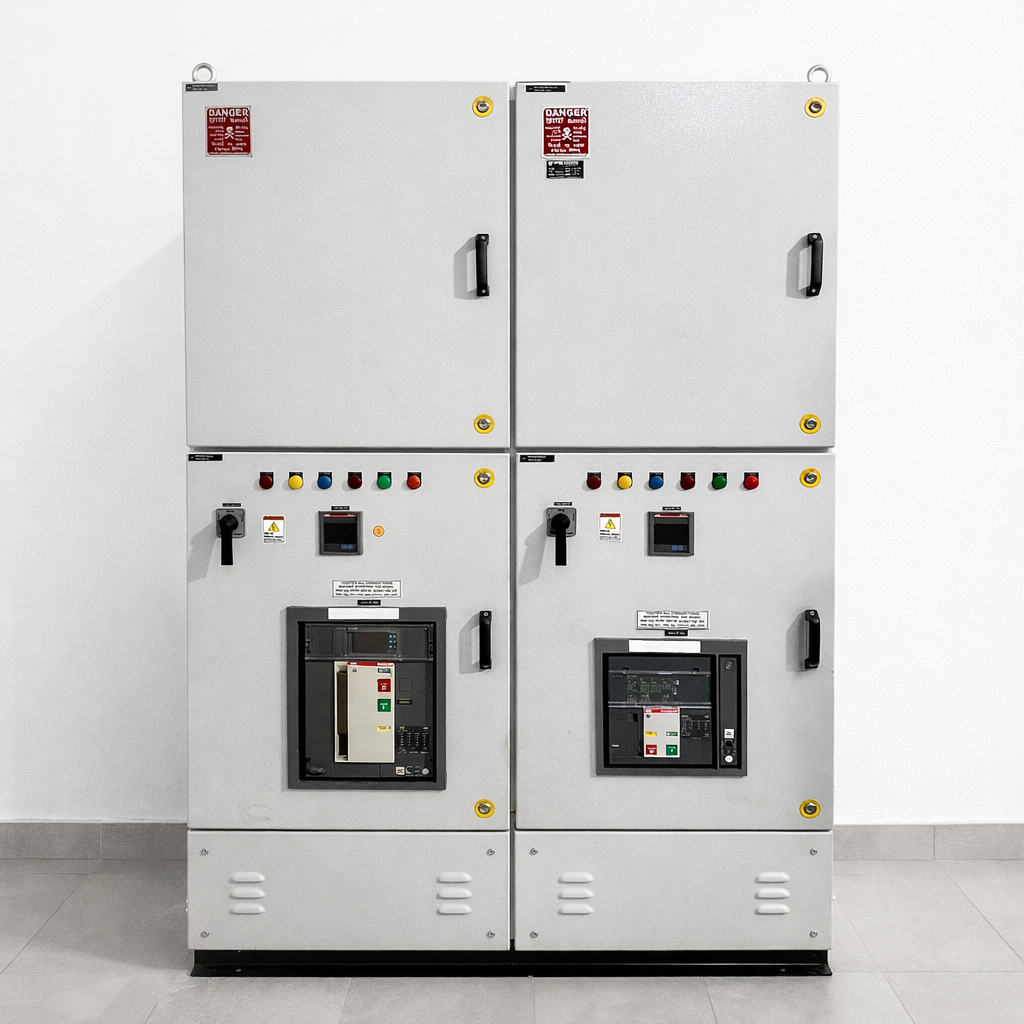

The Automatic Mains Failure (AMF) Panel is an essential component of any critical power backup system, especially those using a standby generator. It is a control panel designed to ensure uninterrupted power supply to a facility by automatically managing the switch between the main utility power (the 'Mains') and the backup generator.
In essence, the AMF panel is the unblinking watchman that eliminates the need for any manual intervention when a power outage occurs.
The operation of an AMF panel is an automated, timed sequence that prioritizes system safety and power continuity:
The AMF controller continuously monitors the incoming mains supply for parameters like voltage and frequency.
When the mains power fails or drops significantly below an acceptable threshold, the controller detects the Mains Failure condition.
After a short, programmed delay (to prevent nuisance starting from momentary power dips), the AMF panel sends an automatic start signal to the backup generator.
Once the generator starts and reaches its required operating parameters (stable voltage and frequency), the AMF panel operates a transfer switch (or contactors/circuit breakers) to disconnect the load from the failed mains and connect it to the generator supply.
When the mains power returns and stabilizes, the panel runs a timer to confirm stability, then automatically switches the load back to the utility mains.
The generator is kept running for a brief cooldown period (usually unloaded) before the AMF panel sends the final signal to shut it down, ensuring safe engine temperature and longevity.
The panel is a sophisticated assembly of electrical and electronic devices working in coordination:
A microprocessor-based device that handles all the logic, timing, monitoring, and control commands.
Physically switches the load between sources. Typically uses two mechanically and electrically interlocked contactors or a motorized circuit breaker/switch, preventing the generator and mains from ever being connected simultaneously and avoiding dangerous backfeeding.
Circuit breakers, fuses, and relays protect the panel’s internal control circuitry and the main power lines from overcurrents.
Voltmeters, frequency meters, and LED indicators show the real-time status of the mains, the generator, and the load connection.
Maintains the charge of the generator’s starting battery, ensuring it is ready to crank the engine whenever a failure occurs.
AMF panels are vital in critical applications like hospitals, data centers, airports, and telecommunication hubs, where even a few seconds of downtime can have significant consequences.
